- for measuring and transferring wall angles from 30 to 180° and subsequent alignment of the angle at the mitre saw
- automatic angle bisector for the correct mitre cut makes your work easier and reduces errors
- incl. telescopic corner callipers for outside corners and foldable stop for easy marking at the workpiece

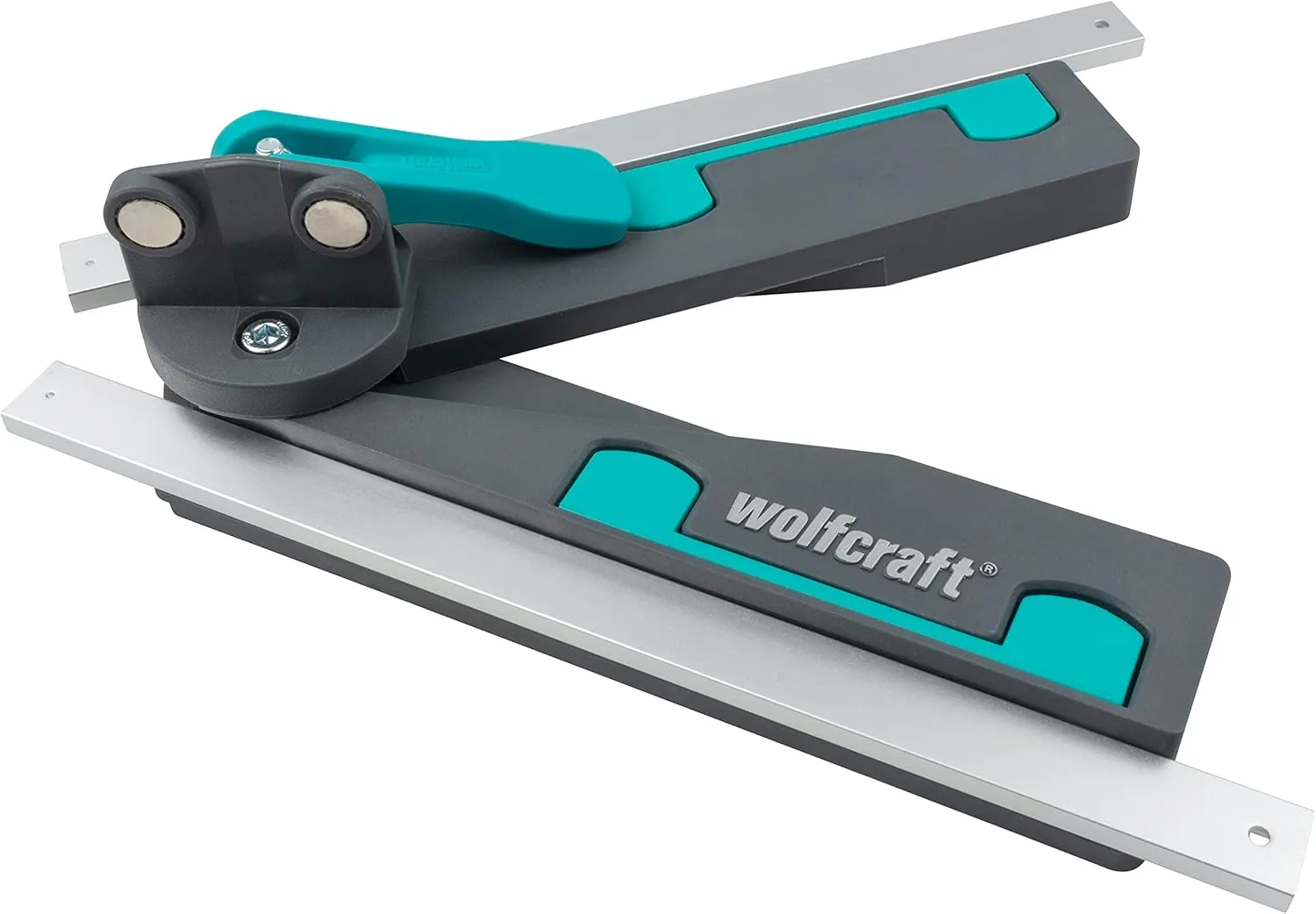

The angular bevel gauge for mitre saws enables precise, convenient measurement of angles with subsequent transfer to the mitre saw. The first step is to push the two plastic legs into the corner of the wall and align them along the walls. Fasten them in position using the eccentric lever. The lever is designed for easy operation, even in tight working areas. In the next step, place the angular bevel gauge with the two integrated magnets at the saw blade and accurately align the angles at the adjustable stops of the saw. When cutting, the automatic angle bisector ensures the correct mitre cut; this makes your work easier and practically eliminates the risk of errors. You can also use the telescopic corner callipers to easily measure outside corners. In addition, the limit stop can be folded out, making it easy to mark angles directly on the workpiece.
