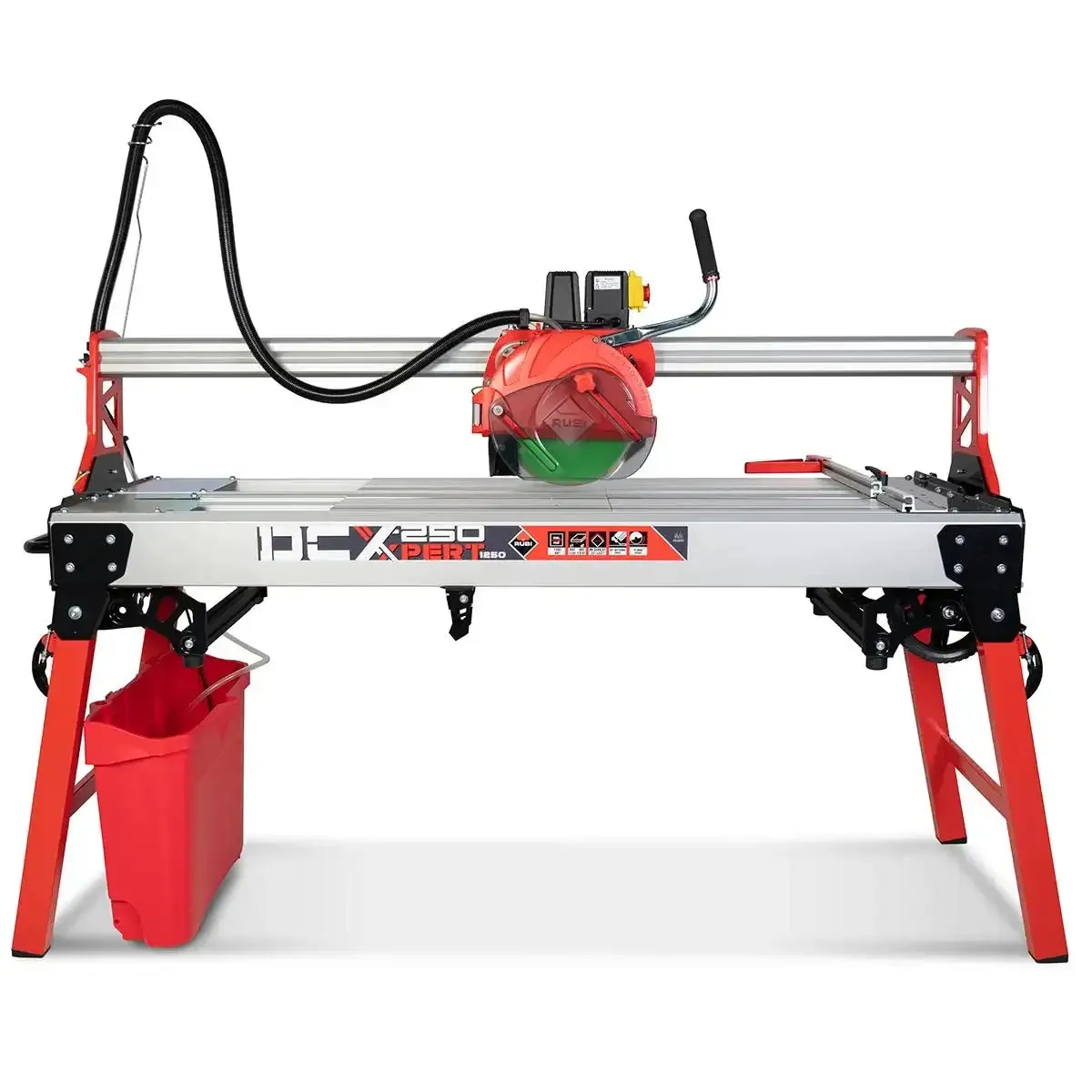

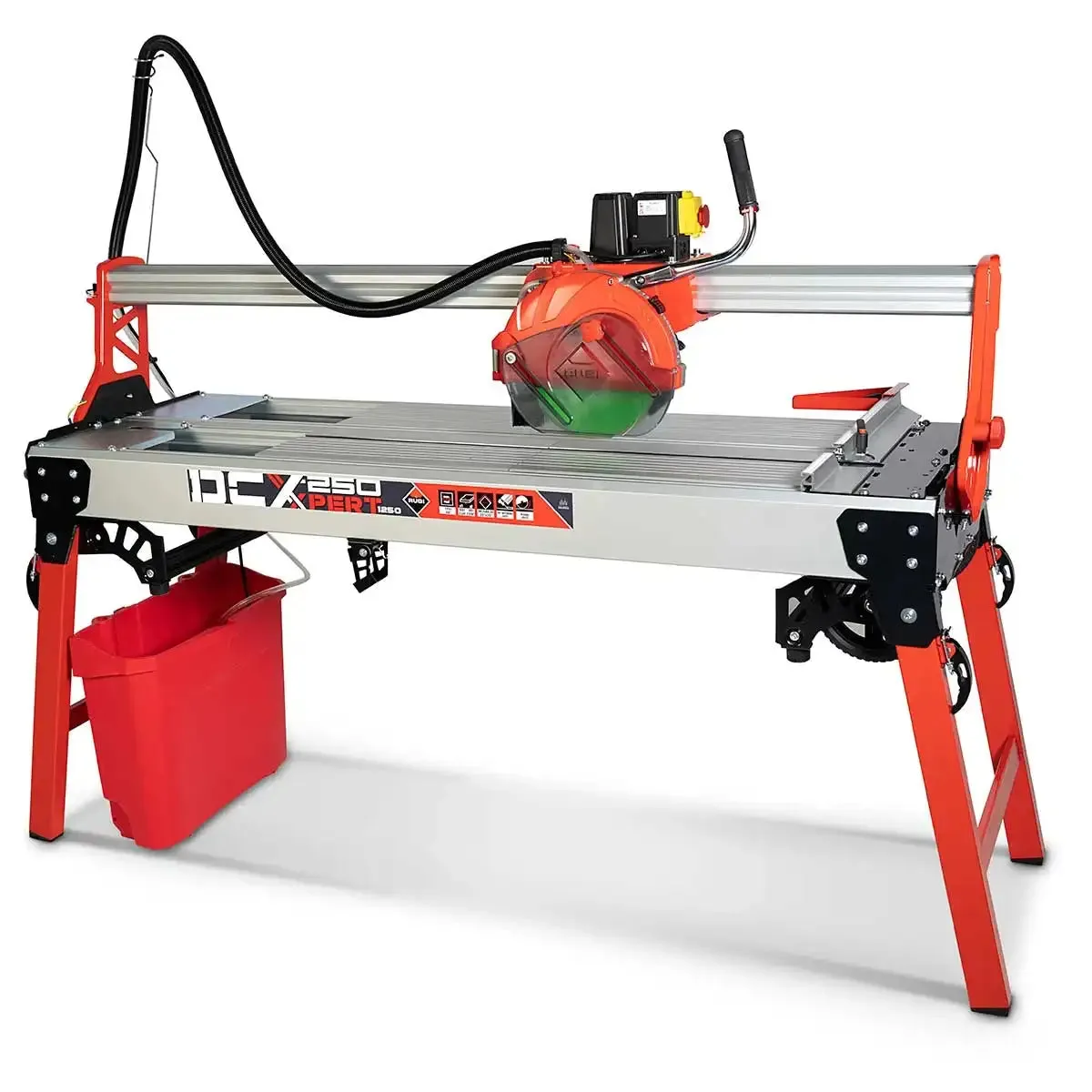

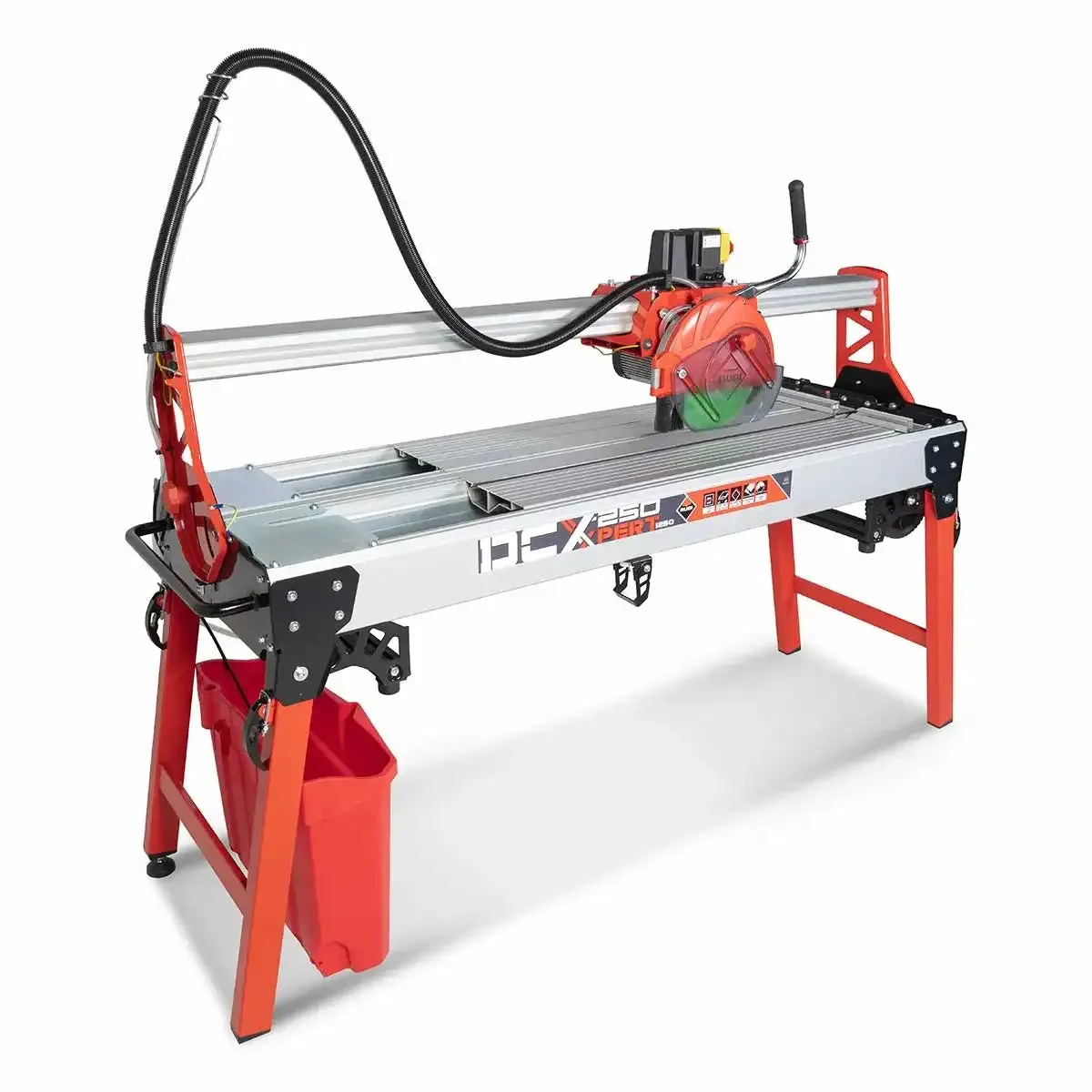

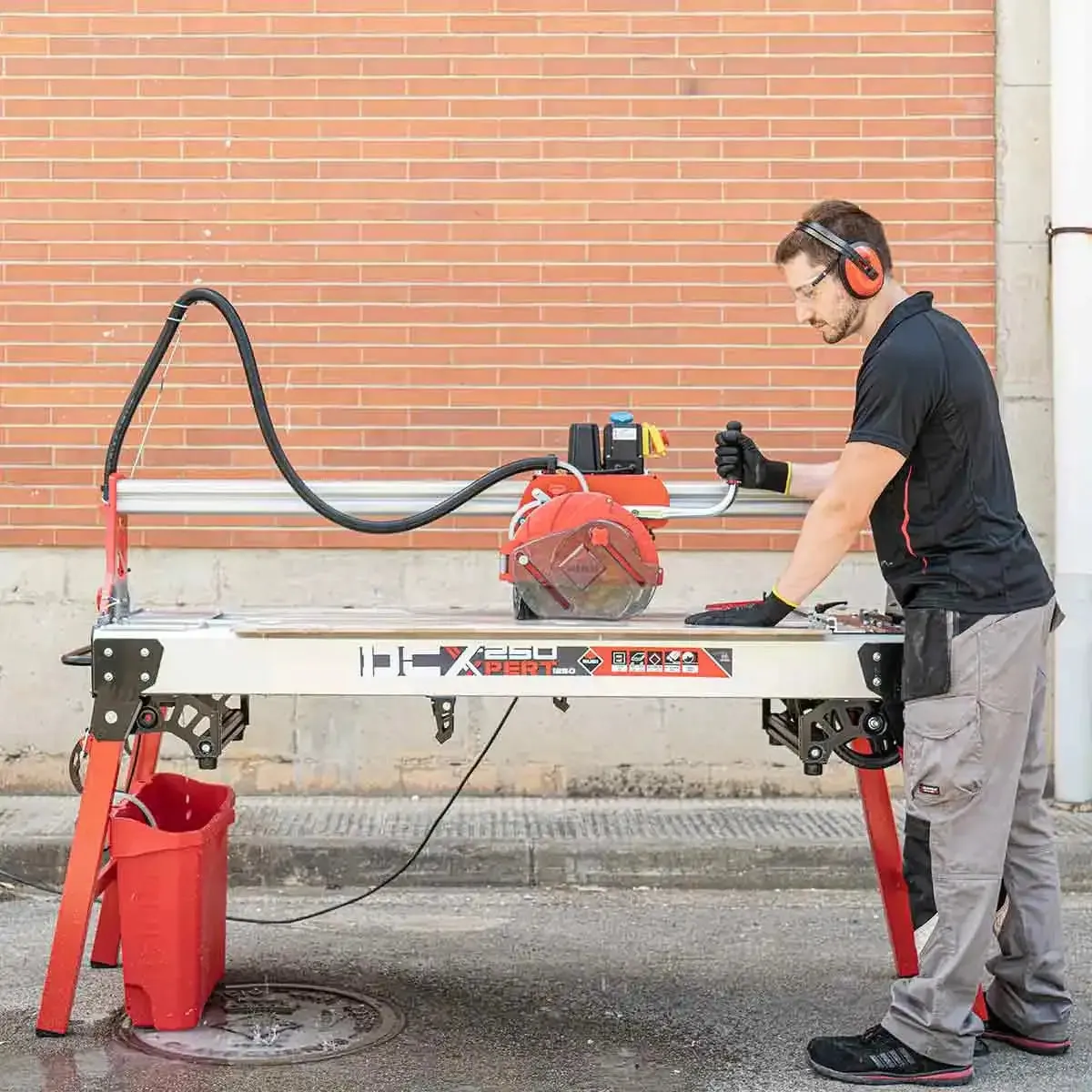

Rubi Tools DCX-250 Xpert Wet Saw
The Rubi DCX-250 Xpert is a professional saw with a movable head for wet cutting with a mitering effect. It is suitable for intensive cutting of porcelain, stoneware, and ceramic tile and can be used for occasional cutting of natural stone, such as marble or granite.

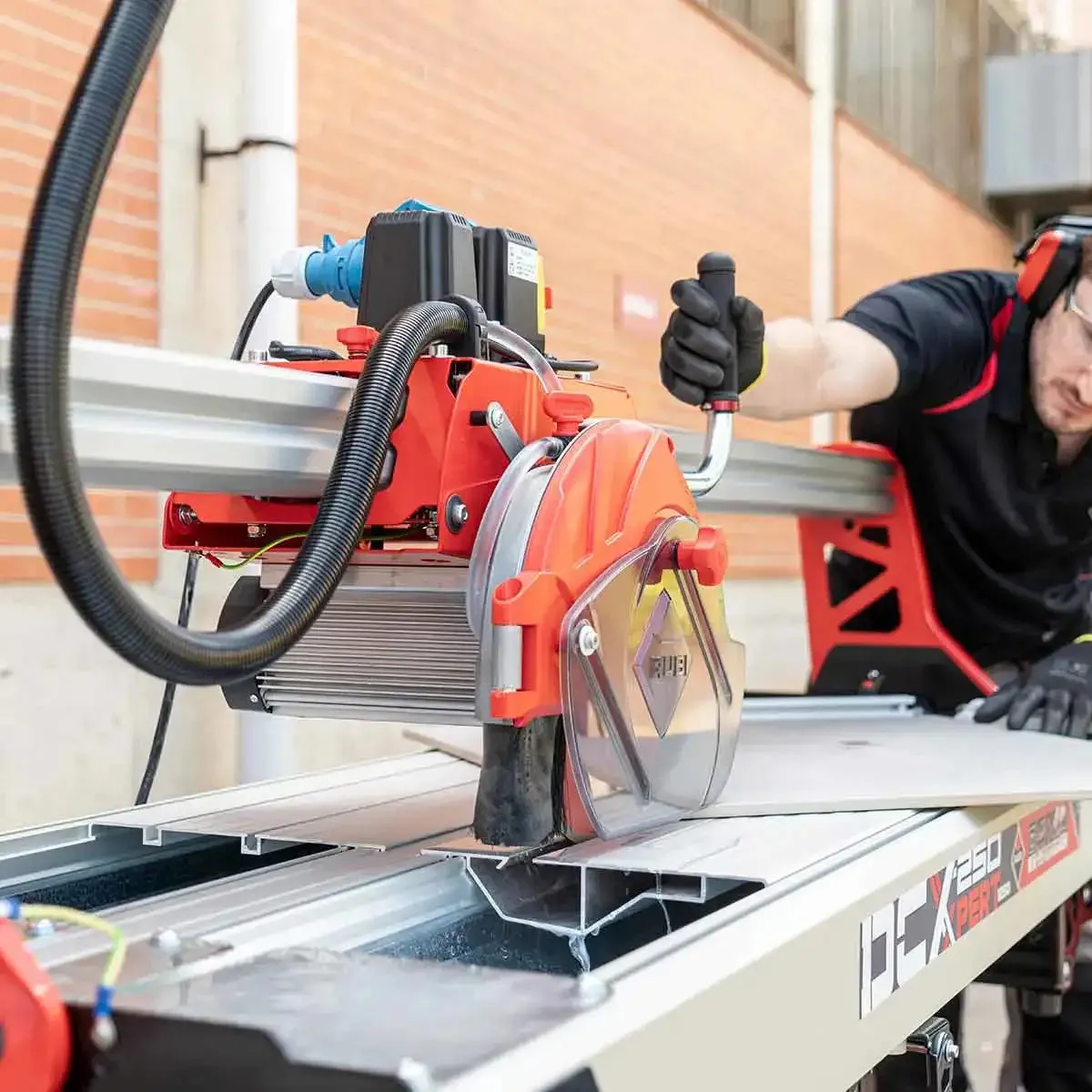

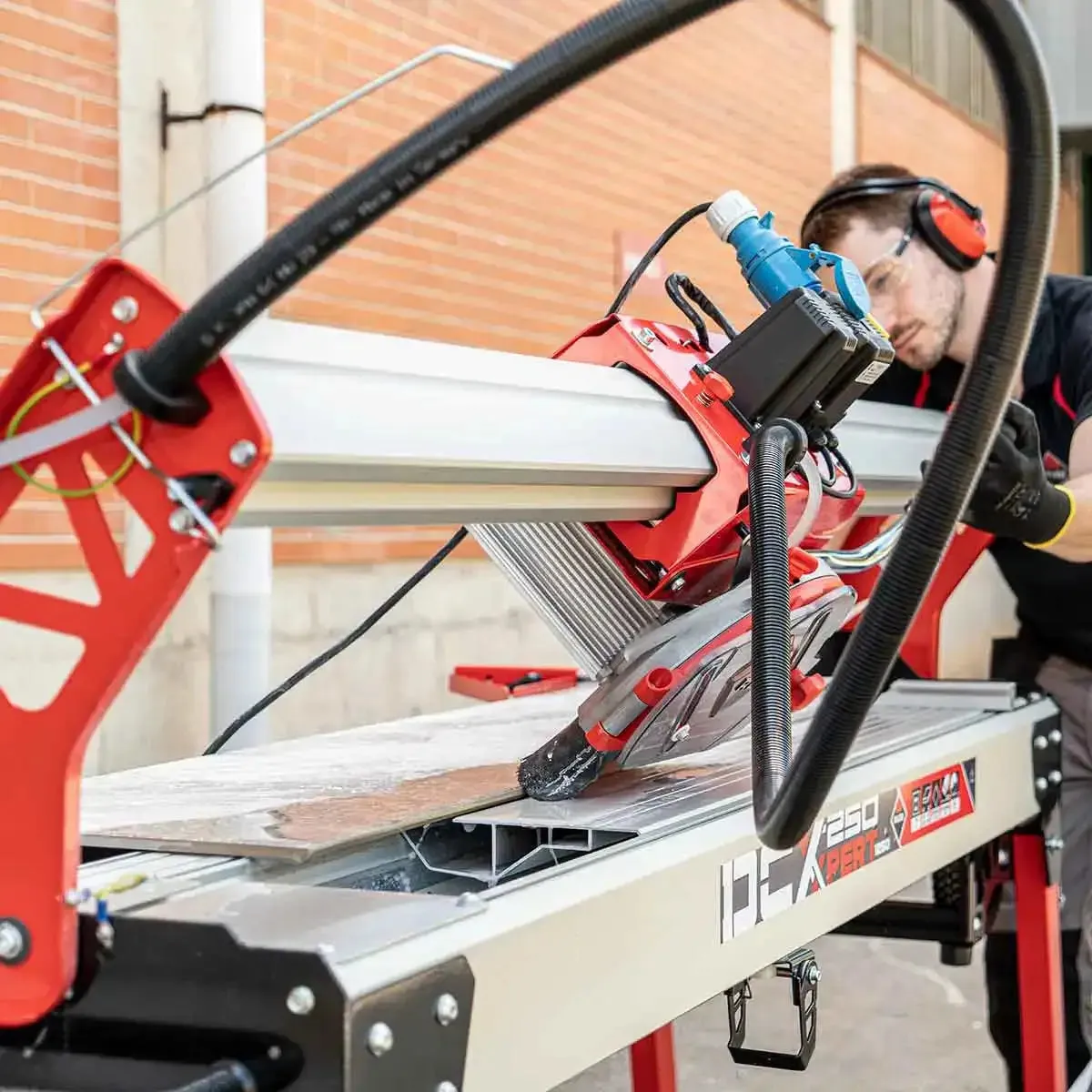

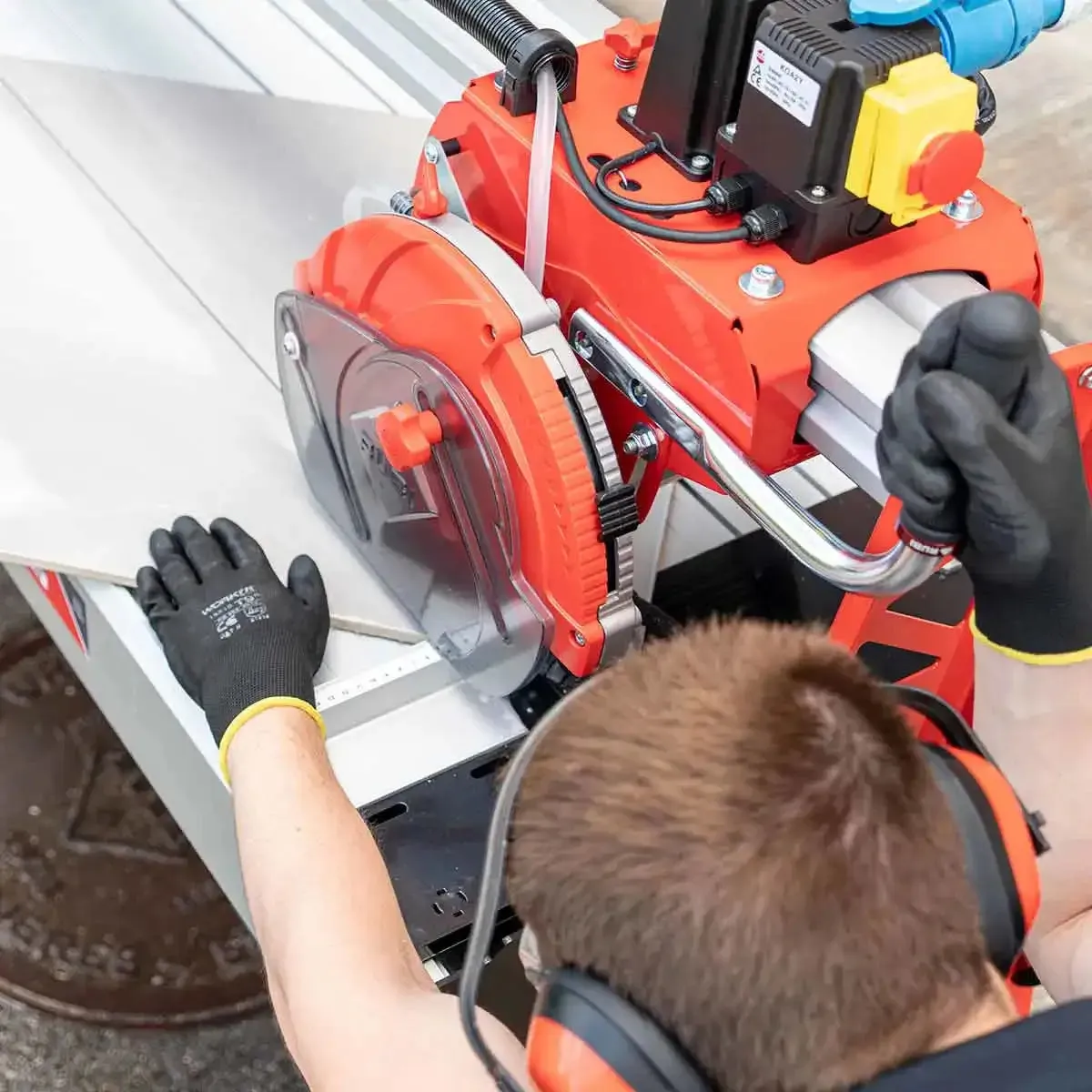

C3 Python Cooling System
The new system guarantees that water use is optimized by directing it only at the point of contact with the ceramic. At the same time, it minimizes water loss from the disc's centrifugal effect, thus reducing splashing. It guarantees the perfect cooling of the diamond part, prolonging disc life and improving cutting precision.
A cooling system with a triple contact point between the disc, the water, and the material to be cut. The water jet is always tangent to the disc's rotation (not lateral). The tube movement is always concentric on the rotation of the disc, ensuring permanent contact between the nozzle and ceramic, regardless of disc thickness, utilizing a clip system on the cutting head to quickly and precisely adjust the tube height, thus avoiding direct manipulation and guaranteeing the user's safety when attempting to adjust the cooling jet manually. Providing a height adjustment makes it possible to ensure perfect visibility when making the initial cut.
Features
- Premium quality electric wet saws
- Direct transmission 2-HP motor
- Two options for the DCX: 52962 DCX-250 1250 (49") or 52972 DCX-250 1550 (61")
- Reinforced aluminum chassis with an innovative triple beam system and steel sides, which improves stability directly, resulting in a better cut finish
- Reinforced cutting guide

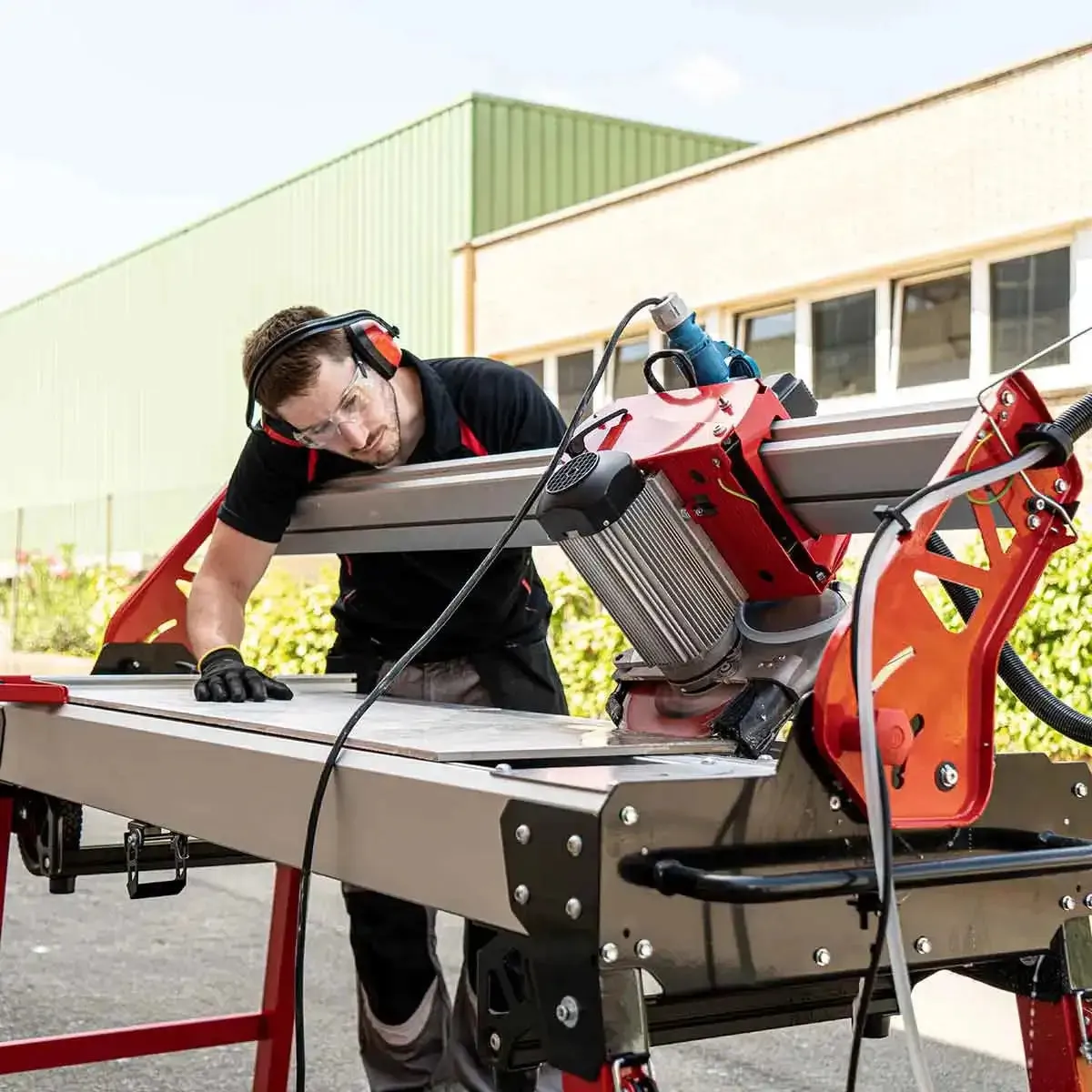

- High-performance mitering effect with cutting height adjustment

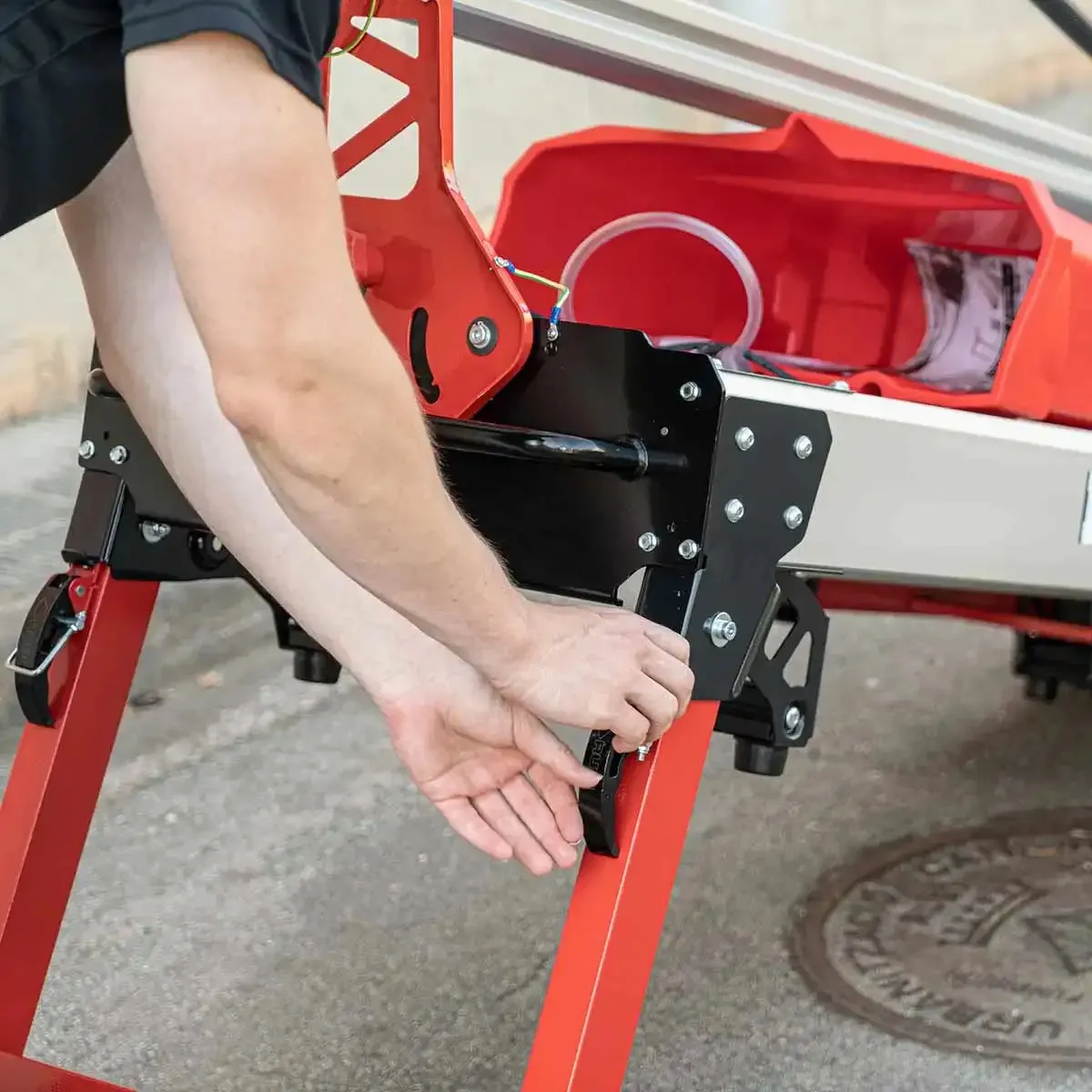

- Reinforced folding legs with anti-folding and quick-locking system

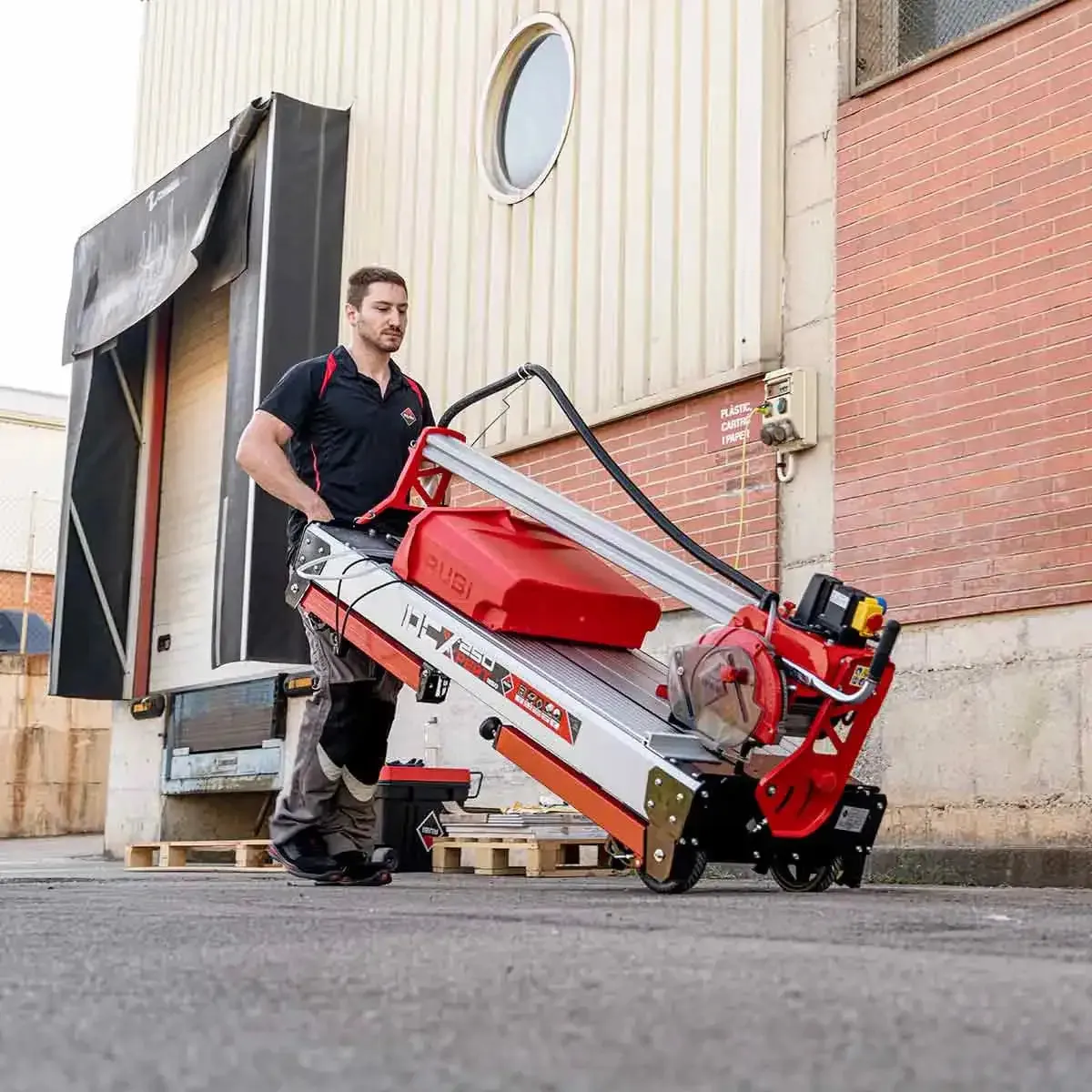

- Carrying handle welded to the chassis and reinforced off-road wheels for easier portability and handling of the machine
- Steel double decanter system for improved water efficiency and recovery

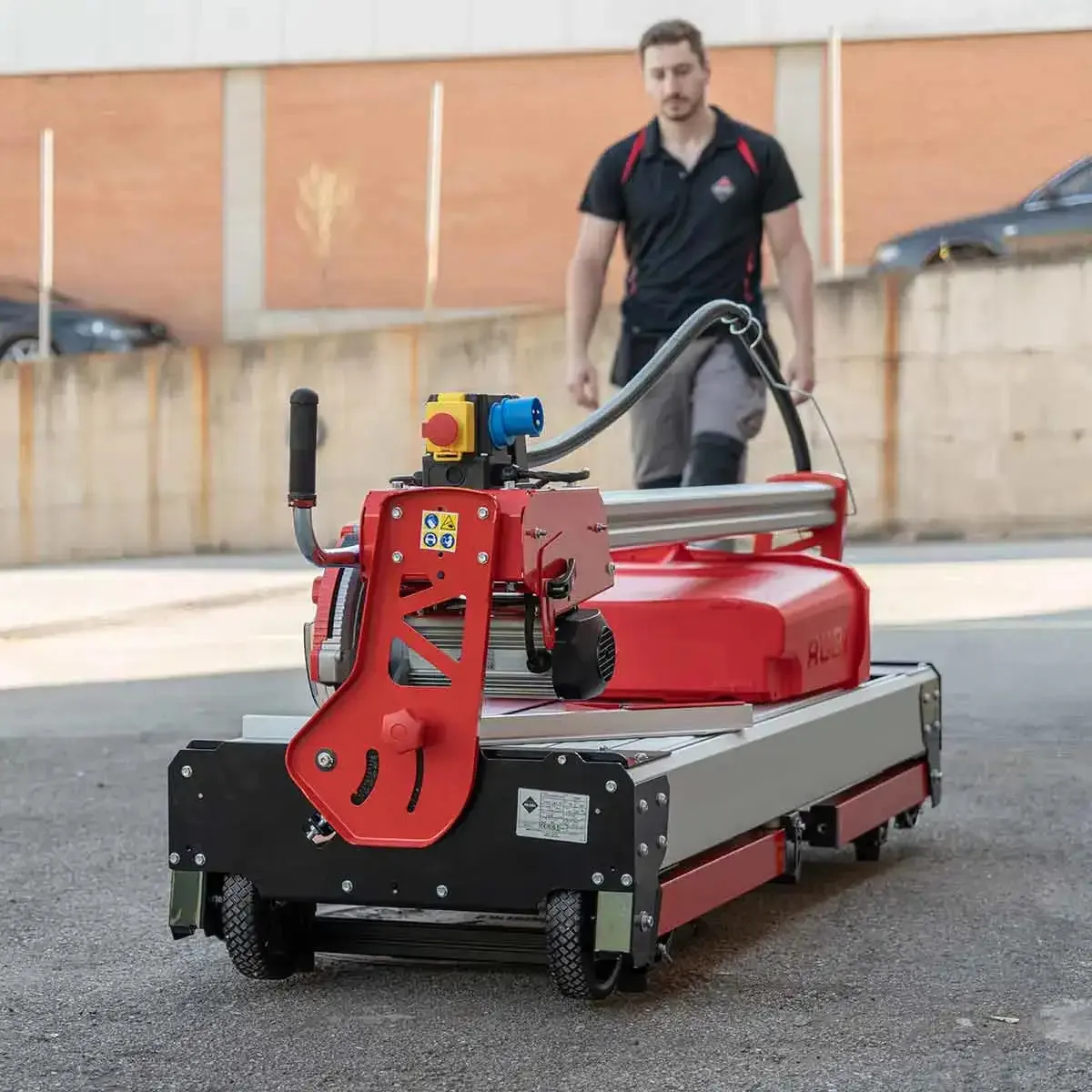

- Features an automatic fastening assembly to anchor the legs once the machine is in the transport position
- This system also provides additional safety when transporting and handling the machine since it keeps the legs from moving or dropping unexpectedly
- Features a system with a position axis and spring that allows the motor position to be adjusted more precisely
- Aluminum square adjustable from 0 to 60 degrees for repetitive cuts
- Simplified and easily removable external water tank with a 30-l capacity
- Ergonomic, bi-material (Softgrip) vertical handle
- Exclusive RUBI ZERO DUST patented system certified by the TNO*for safe exposure thanks to the reduction of breathable dust particles created while cutting
- Grounding connection built into the chassis
What's Included?
- DCX-Xpert Wet Saw
- 31961 Red Cobra 10" Blade
- Power cable
- Foldable reinforced feet with an anti-fold system and quick lock
- Upgraded anti-splash protection system with auto slide protection cover
- External 30L water deposit
- Aluminum square
- Telescopic transport handle
- Reinforced off-road type wheels
- Operators Manual
| Rubi DCX-250 Xpert Rail Saw Specifications | ||
| Model | 52962 | 52972 |
| Power (Direct Drive) | 2 hp (1.5 kW) | 2 hp (1.5 kW) |
| Voltage | 120V/60Hz | 120V/60Hz |
| Blade RPM | 2750 – 3350 | 2750 – 3350 |
| Length of Cut | 49” (125 cm) (direct, w/o plunge) 52" (133 cm) (w/ plunge) | 61” (155 cm) (direct, w/o plunge) 64" (163 cm) (w/ plunge) |
| Diagonal Cut | 35” x 35” (88.5 x 88.5 cm) | 43.3” x 43.3” (110 x 110 cm) |
| Max Cut Thickness | 2.36” – 3.54” (60 - 90 mm) - 1.96" (50 mm) for miter | 2.36” – 3.54” (60 – 90 mm) - 1.96” (50 mm) for miter |
| Blade Capacity | 10" | 10" |
| Arbor | 1" | 1" |
| Weight | 172 lbs (78 Kg) | 189.5 lbs (86 Kg) |
| Dimensions (mounted) | 75.5” x 29” x 51” (1920 mm x 740 mm x 1300 mm) | 87.4” x 29” x 51” (2220 mm x 740 mm x 1300 mm) |
