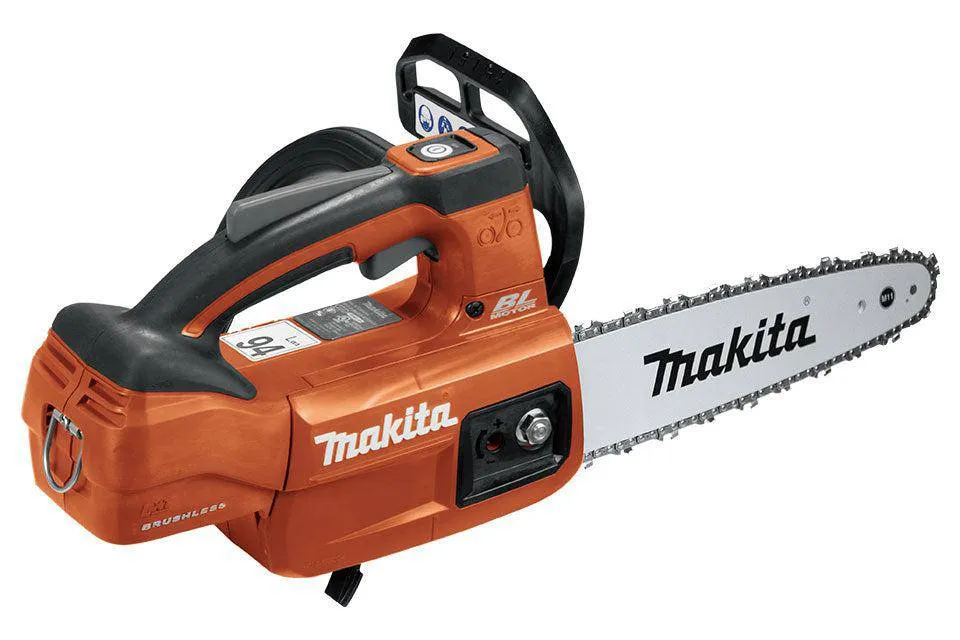

- High Cutting Performance, Ultra Lightweight Top Handle Chain Saw Equivalent to Compact Engine Chain Saw
- Outer Rotor BL Motor direct-drive system provides high cutting performance equivalent to a compact engine chain saw; 0-24.0 m/s (0-1,440 m/min) (0-4,720 FPM)
- Thick branch mode / torque boost mode enables to cut thick branches by temporarily boosting current limiter
- Ideal for pruning application
- Ultra lightweight for reduced operator fatigue
- Main power switch with auto power-off function
- Kickback brake and variable speed trigger switch provide high operability equivalent to an engine chain saw
- Kickback brake & electric brake for maximum productivity and maximum operator safety
- Captive nuts prevent loss of nut
- Soft start feature gradually increases speed to eliminate start up shock
- Soft grip handle for non-skid operation
- Adjustable automatic chain lubrication with large oil reservoir
- Large oil filling port with view window allows operator to easily add and check bar oil level
- Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
- Hook on the bottom of housing for excellent balance on tree when hanging the machine
- Low noise level and zero emissions for operator comfort
- Cordless for reduced maintenance; no need to change engine oil or spark plug, clean air filter or drain fuel for storage
- Instant start-up: simply load 18V LXT battery and the saw is ready to use
- Battery protection circuit protects against overloading, over-discharging and over-heating

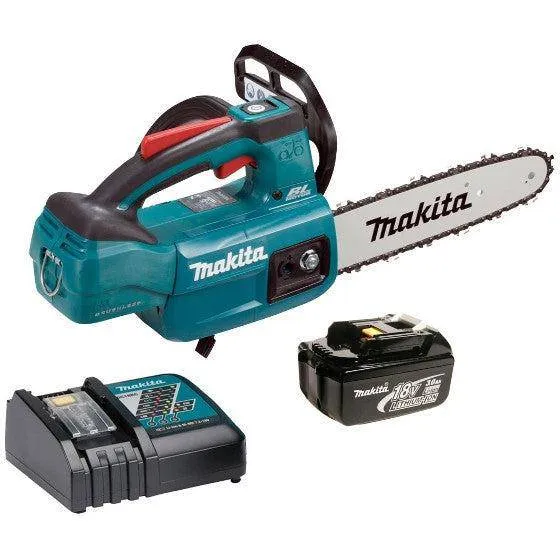

- supplied with 1x 5.0Ah battery (BL1850) & charger (DC18RC)
Included accessories
1/4" Saw Chain (191D60-8), Sprocket Nose Guide Bar (161846-0), Guide Bar Cover, Spike Bumper Set and Wrench 13-16 (782023-7)
Optional accessories
250mm (10") Saw Chain 1/4" .043" M11
Sprocket nose bar for M11 (162547-3)
250mm (10") Guide Bar, 1/4" LP, .043"
250mm (10") Saw Chain, 3/8" LP, .043"
Chain Oil 1 Litre
Specifications
Power output | 570W |
Oil tank capacity | 140mL |
Bar length | 250mm (10") |
Chain type | M11 |
Chain pitch | 1/4" |
Chain gauge | 1.1mm / 0.043" |
Chain speed | 1,440m/min |
Overall dimensions | 482mm |
Net weight | 3.2kg |
Voltage | 18V |
Continuous Run-time | 57 cuts *Test 10 with 6.0Ah battery |
LXT battery compatibility | 3Ah 4Ah 5Ah 6Ah |
